Various speed air compressor SPM210

High-efficiency and energy-saving permanent magnet synchronous motor:High efficiency and high protection grade design can be maintained at each speed point, exceeding the national first-class energy efficiency...

keyword：

Various speed compressor

Category：

SPM Various speed Air compressor

Sales Department：

0311-85468888

Sales Call：

13833393888

Back To List

Product Details
Product Parameters

- Commodity name: Various speed air compressor SPM210
- Commodity ID: SPM210EZ
High-efficiency and energy-saving permanent magnet synchronous motor:High efficiency and high protection grade design can be maintained at each speed point, exceeding the national first-class energy efficiency...

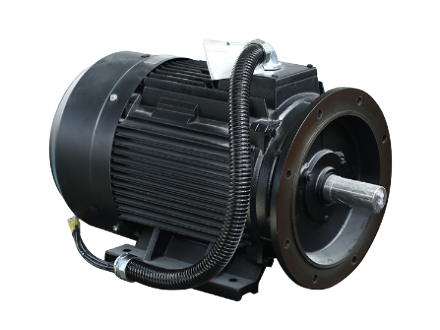

High-efficiency and energy-saving permanent magnet synchronous motor

High efficiency and high protection grade design can be maintained at each speed point, exceeding the national first-class energy efficiency

Brand screw host

Large rotor, low speed, long life.
High efficiency, low noise, low vibration, high reliability.
Bearing life ≥ 100,000 hours.
High efficiency, small leakage triangle and low specific power.
Fewer wear parts and lower maintenance costs.

High performance vector brand inverter

Well-known brand heavy-duty inverter with built-in DC reactor to improve the quality of the power grid.
The overload capacity is strong, the applicable voltage range is wide, and it can still work stably under the condition of voltage instability.

Multi-function touch display

With high-resolution display, the panel is clearer and the layout is reasonable, and the operation data of the air compressor is more convenient to view.
High-speed ARM processor and large-capacity storage make communication faster.

Plate Fin Cooler

The radiator adopts a high-efficiency plate-fin structure with high heat exchange. The lubricating oil adopts a dual process, and the compressed air adopts a single process.

Oil and gas separator

Large margin design, multi-stage separation, long service life.
Oil content≤3ppm.
Guaranteed high-quality air supply.
The material is imported glass fiber.
Minimal pollution and minimal maintenance.

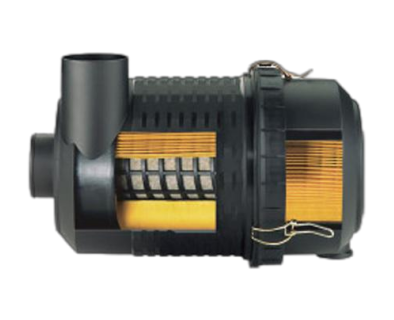

Man hummel air filter

The international brand air filter has large design margin, high ash capacity, long service life and high filtration accuracy, which effectively guarantees the stable operation of the entire unit system.

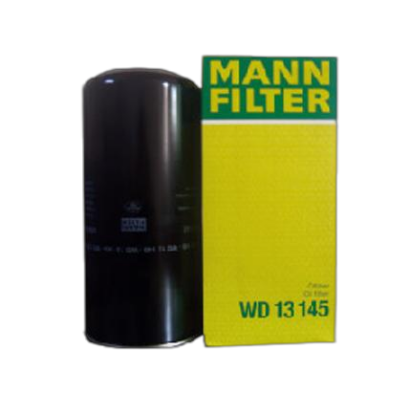

Mann Hummel oil filter

Reliably filter out the dirt in the lubricating oil.
The size of the oil particles was controlled at 0.1 μm.
Ensure the smoothness and lubrication of the oil circuit system.
Key words:
- Various speed compressor

SPM permanent magnet variable frequency screw air compressor

Model	Exhaust Pressure（MPa）	Displacement（m³/min）	Motor Power（kW）	Physical size【（L×W×H）mm】	The outlet size	Unit weighe（Kg）
SPY35HY	1.6	1.0	15	720X720X1120	1×1″	260
SPY35EY	0.8	1.0	7.5	650X590X1060	1×3/4″	165
SPY55EY	0.8	1.5	11	720X720X1120	1×1″	200
SPY75EY	0.8	2.3	15			236
SPM140	0.8	4.0	22	1250×850×1225	1×1″	375
	1.0	3.6
SPM210	0.8	6.5	37	1380×1050×1325	1×1 ”	600
	1.0	5.7
SPM245	0.8	7.5	45	2000×1220×1555	1×2″	1100
	1.0	6.8
SPM350	0.8	10.5	55			1300
	1.0	8.9
	1.3	7.6
SPM420	0.8	13.5	75			1500
	1.0	11.5
	1.3	10.0
SPM565	0.8	16.5	90	2350×1765×2060	DN65	2200
	1.0	13.7
	1.3	12.1
SPM710	0.8	20.5	110			2500
	1.0	17.9
	1.3	15.8
SPM780	0.8	24.0	132			2900
	1.0	21.3
	1.3	19.6
SPM1060	0.8	30.0	160	3070X2140X2130	DN80	4000
	1.0	26.0
	1.3	22.0
SPM1165	0.8	32.0	185	3070X2140X2130	DN80	4200
	1.0	28.0
	1.3	25.0
SPM1270	0.8	35.0	200	3540X2380X2290	DN100	4900
	1.0	31.0
	1.3	27.0
SPM1420	0.8	41.0	250	3540X2380X2290	DN100	5100
	1.0	39.0
	1.3	35.0
