Diesel driven Stationary air compressor SDF Series


Product Highlights:1. Brand diesel engine with reliable quality and stable performance. The strict heat balance applicability of the whole machine can ensure efficient operation at an ambient temperature of not more than 40 °C...

keyword:

Diesel driven Stationary air com

Category:

SDF diesel stationary drilling rig

图片名称

Sales Department:

图片名称

Sales Call:

  • Product Details
  • Product Parameters
    • Commodity name: Diesel driven Stationary air compressor SDF Series
    • Commodity ID: SDF1200L

    Product Highlights:1. Brand diesel engine with reliable quality and stable performance. The strict heat balance applicability of the whole machine can ensure efficient operation at an ambient temperature of not more than 40 °C...

    Product Highlights

    1. Brand diesel engine with reliable quality and stable performance. The strict heat balance applicability of the whole machine can ensure efficient operation at an ambient temperature of not more than 40 °C.
    2. The unique patented design, light-load start-up system, and air control design adapted to the working characteristics of the drilling rig make the air control more stable during the use of the unit.
    3. The high-efficiency heat dissipation system is divided into three parts: water cooling, intermediate cooling and oil cooling, which ensures the reliable operation of the diesel engine and is suitable for high temperature working environment.
    4. The independent research and development of the side door panel design, the layout is reasonable, the daily maintenance is convenient, and it has the advantages of both fixed machine and mobile machine.
    5. Equipped with single-point hoisting, forklift hole and other devices, with towing ring, which can be transported by wrecker truck, which is convenient for the transfer and installation of the unit.
    6. Waterproof and dustproof body design, suitable for harsh working environment in the wild.
    7. The heating boiler and remote remote control components for low temperature start-up can be selected according to customer requirements.

    comps
    comps

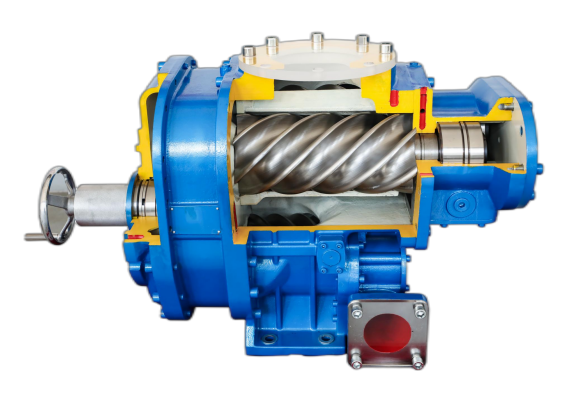

    High-efficiency two-stage compression screw host

    The high-efficiency two-stage compression main engine has long bearing life and high-reliable sealing performance, resulting in product quality and production system accuracy. It has established a good reputation among users around the world after a long-term test.

    • Long operating life

    • Low maintenance costs

    • High efficiency, small leakage triangle and low specific power

    • Reduced wear

    • Low vibration and low noise

    comps

    Brand power

    • International brand diesel engine

    • Low fuel consumption and good fuel economy

    • Compact structure and easy maintenance

    • Super power, green and environmental protection

    comps

    Humanized control system

    • Clear interface, easy and fast operation

    • High performance, brand guaranteed

    • Superior sensitivity

    comps

    Air system - heavy duty air filter

    • American brand heavy duty air filter, integrated cyclone filter and adsorption filter, double filter effect

    • The dust removal effect is 99.9%, and the filter element precision reaches 3 microns

    • Ensure that the compressor is effectively dust-proof and ensure the air quality

    comps

    Oil system

    • Adopt the oil filter of American Donaldson Company

    • Filters out dirt from lubricants

    • The particle size is controlled at 0.1 microns

    • Ensure the smoothness and lubrication of the oil circuit system, and the heat dissipation function

    comps

    Intake valve

    • Empty start

    • 0~100% stepless capacity adjustment

    • Equipped with heavy truck single swing check valve

    • Butterfly intake control valve

    • One-piece aluminum alloy

    • In the event of an emergency shutdown or power failure, the check valve closes immediately

    Key words:
    • Diesel driven Stationary air com
  • SDF two-stage compression diesel fixed screw machine

    Model

    SDF1025K

    SDF1100K

    SDF1300M

    SDF1200L

    SDF1300K

    Discharge air volume(m3/min)

    29

    33

    33

    35

    37

    Dischage pressure(MPa)

    2.4

    2.5

    3.5

    3.0

    2.4

    Gas/oil content(PPM)

    ≤5

    Discharge Pipc. Dia.

    1×G2" 1×G3/4"

    Discharge temperature

    ≤130

    Unit drive way

    Direct Driven

    Diesel engine parameters

    Model

    YC6MK400L-H300

    WP12G480E310

    QSZ13-C550-30

    Power(KW)

    295

    353

    412

    Speed(r/min)

    1900

    1750

    1900

    Displacement(L)

    10

    12

    13

    Dimensions

    Length(mm)

    3400

    3400

    4000

    width(mm)

    1950

    1950

    1950

    height(mm)

    1830

    1830

    2100

    Unit weight(Kg)

    1270

    4700

    5000

    5500
