Explosive-proof air compressor SMP Series


Design Highlights:Brand motor, explosion-proof switch, reliable use,Double filter air intake system to ensure the life of the main engine,Designed for the mine environment...

keyword:

Explosive-proof air compressor S

Category:

Diesel driven screw air compressor

图片名称

Sales Department:

图片名称

Sales Call:

  • Product Details
  • Product Parameters
    • Commodity name: Explosive-proof air compressor SMP Series
    • Commodity ID: SMP1060E

    Design Highlights:Brand motor, explosion-proof switch, reliable use,Double filter air intake system to ensure the life of the main engine,Designed for the mine environment...

    Design Highlights

    Brand motor, explosion-proof switch, reliable use
    Double filter air intake system to ensure the life of the main engine
    Designed for the mine environment, more suitable for the underground working environment

    comps

    Brand screw host

    Large rotor, low speed, long life.
    High efficiency, low noise, low vibration, high reliability.
    Bearing life ≥ 100,000 hours.
    High efficiency, small leakage triangle and low specific power.
    Fewer wear parts and lower maintenance costs.
    The same power and larger air volume

    comps

    With pressure loss protection
    With overload protection
    Short circuit, phase failure and leakage blocking protection
    Start and stop mining directly or remotely

    comps

    High-efficiency air-cooled fully enclosed motor
    High efficiency and large starting torque
    Low noise and more reasonable structure
    Imported SKF heavy-duty bearings
    Class F insulation, protection class IP54, high-efficiency fully enclosed special low-speed

    comps

    Self-contained automatic fire extinguishing device

    Automatic fire extinguishing, nitrogen driven
    No need for human operation, 68 degrees automatic

    comps

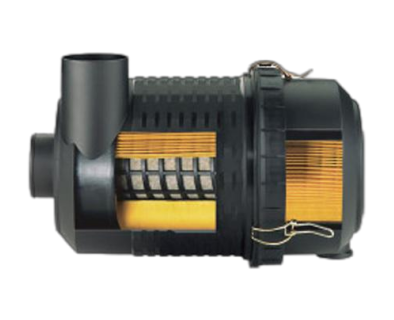

    man hummel air filter

    The international brand air filter has large design margin, high ash capacity, long service life and high filtration accuracy, which effectively guarantees the stable operation of the entire unit system.

    Key words:
    • Explosive-proof air compressor S
  • SMP series explosion-proof screw machine

    Model

    SMP
    120E

    SMP
    210E

    SMP
    350E

    SMP
    420E

    SMP
    565E

    SMP
    710E

    SMP
    565G

    SMP
    850E

    SMP
    710G

    SMP
    1060E

    SMP
    850G

    SMP
    885H

    SMP
    770J

    SMP
    770GW

    MMP
    930GW

    Discharge air Volume(m3/min)

    3.6

    6.5

    10.2

    13

    16.5

    23

    17

    25

    22

    30

    25

    25.1

    22

    23

    26

    Discharge pressure(MPa)

    0.8

    0.8

    0.8

    0.8

    0.8

    0.8

    1.25

    0.8

    1.25

    0.8

    1.25

    1.6

    2

    1.25

    1.25

    Discharge Pipc.Dia

    comps

    comps

    1×2"

    1×2"

    1×2"

    1×2"

    1×2"

    1×2"

    1×2"

    comps

    comps

    1×2"

    1×2"

    1×2"

    1×2"

    Main Motor

    Power(kW)

    22

    37

    55

    75

    90

    132

    132

    160

    160

    185

    185

    200

    200

    160

    200

    Speed(r/min)

    2980

    1460

    2980

    Working Voltage(V)

    380/660

    660/1140

    Insulation class/protection level

    Class F / IP55

    Drive way

    Sirect Driven

    Cooling fan power(kW)

    1×1.1kW

    1×1.5kW

    1×2.2kW

    1×7.5kW

    1×11kw

    1×11kw

    _

    _

    Dimensions

    Length(mm)

    2130

    2570

    3100

    3300

    3720

    3950

    4180

    4370

    4370

    3810

    3810

    width(mm)

    900

    1140

    1250

    1200

    1300

    1300

    1400

    1630

    1630

    1630

    1630

    height(mm)

    1150

    1480

    1555

    1555

    1800

    1800

    2025

    1950

    1950

    2080

    2080

    Unit weight(kg)

    950

    1400

    2100

    2500

    3100

    4100

    4600

    4950

    4950

    3940

    3800

    Gauge(mm)

    600/900

    Unit noise dB(A)

    72

    75

    80

    82

    85

    87

    98

    98

    96

    96

    Note: If there are special requirements for voltage and gauge parameters, special instructions should be made. The suffix W means water-cooled type, and no suffix means air-cooled type
    Any special parameters of the voltage and gauge request,should be stated ahead.


    For reference only,change without notice
